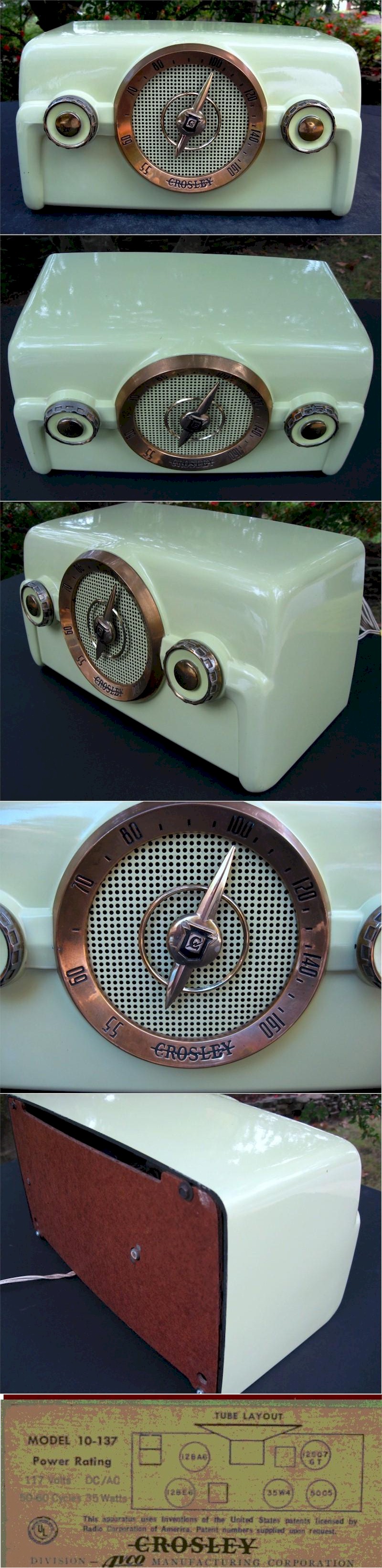

|Photos donated by David Spivey.|
Visit David's web site at http://radioattic.com/spivey.
To see all the photos David has contributed to the Archives, click here.
|Label photo and commentary below courtesy of Earl Almdale.|
While reconditioning this one I found that it had as shown in photo a complement of 5 tubes. A 12BE6, 12BA6, 35W4, 50C5 and 12SQ7 (8 pin). However in my riders schematic, it shows the same tubes except the 12SQ7 it shows a 12AV6 a 7 pin tube. So I ordered a Sams schematic which also shows 5, 7 pin tubes. The tubes do the same thing electronically however it does show that sometimes to save money, Use up old stock, or because of availability problems manufactures would use a substitute part something you have to watch for. Also there is no substitute for a good tube manual and take a schematic or manual with a grain of salt.
